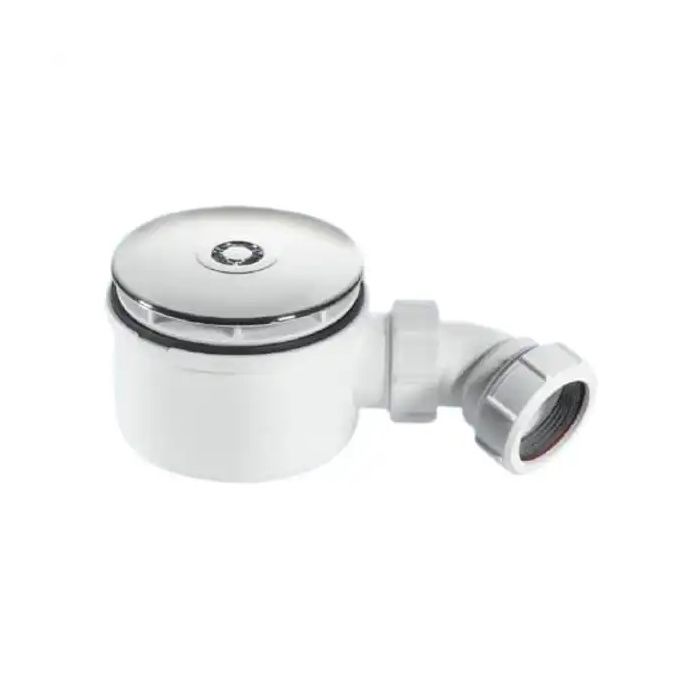

McAlpine 370ST90CP1070 Shallow Shower Trap with 110mm Chrome Plated Flange & Multifit Outlet 1 1/2"

Features:

• Prevents odorous gas in plumbing drains and sewers from rising up through a shower into a home or business.
• Suitable for shower trays with a 90mm waste hole.
• 50mm Water seal.
• 1½" BSP thread.
• Supplied with 135° Bend - BSP coupling nut x 1½" Multifit.
• Removable 110mm flange facilitates easy cleaning.
• 1½" Multifit compression outlet suits all plastic waste pipes to BS EN 1451-1-2000 and BS EN 1329-1:2000, copper pipe (metric or imperial) and lead pipe.
• The moulded internal sleeve of the connection, centres and supports the pipe.
• The Multifit and friction washers ensure a secure seal is made between the pipe and the wall of the fitting.
• When the compression nut is turned hand tight the best possible mechanical joint is complete.
• If a plastic pipe is undersize, or out of shape, the end may require to be warmed to enable it to be pushed over the internal sleeve.

Technical Data:

• Material - Polypropylene
• Colour - Chrome
• Overall height - 70mm
• Flow rate - 34ltr/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 272-2:2002
• Conforms to - EN 274-1:2002, BS EN 1451-1:2000 & BS EN 1329-1:2000
• Finish - Polished
• Diameter - 1½"
• Type Of Fitting - Trap
• Brand - McAlpine
