| Brand | Inta |
|---|---|
| Diameter | 15mm |

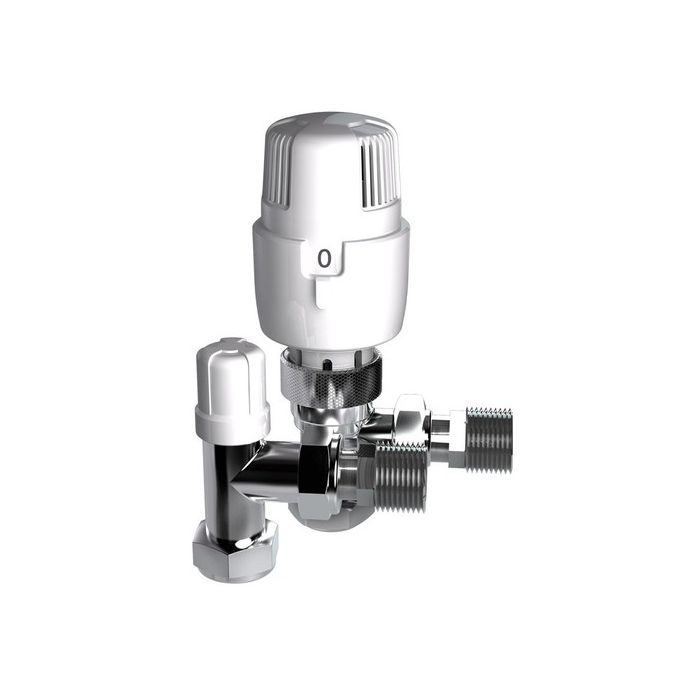

Inta I-Therm Angled Thermostatic Radiator Valves 15mm
MPN Code
15TWINPP
Part Code
NYEINT15TWINPP
The inta i-therm range of thermostatic radiator valves are designed to be fitted in any orientation and with water flowing in either direction. Inta recommends that good working practice dictates that an automatic by pass valve be fitted to central heating systems that incorporate thermostatic radiator valves to prevent the pump pumping against a closed head as the valves begin to shut as the system gets to temperature.
Clever product design means that the i-therm adjustable thermostatic head doesn’t collect and retain dust and dirt ensuring that it will continue to operate efficiently, and consistently, for years to come.
Features:
- Class A efficient thermostatic radiator valve (white heads only)
- Keymark approved to EN 215 (white heads only)
- Liquid filled sensor
- Control range 0 – 30°C
- Anti dirt trap minimalistic design
- Frost protection setting
- Anti chatter cartridge
- Fully bi-directional
- Available in white and chrome
- Maximum working pressure 10 bar
- Maximum flow temperature 110°C
Technical Data:
| Minimum regulation calibration (anti-frost position) | t ° min | 7°C (*) |
| Maximum regulation calibration (position) | t ° max | 30°C (5) |
| Saving condition (position) | 20°C (3) | |
| Maximum exercise pressure | PN | 1000 KPa |
| Maximum differential pressure | P | 100 KPa |
| Minimum nominal flow rate “ qm N” (DP=0.1 Bar) angle -straight | qmN | 200-220 ltrs/h |
| Maximum exercise temperature | 110°C | |
| Maximum storage temperature | 50°C | |
| Hysteresis | C | 0.3 K |
| Authority | a | 0.9 |
| Feedback | Z | 25 min |
| Differential pressure influence | D | 0.2 K |
| Water temperature influence | W | 1 K |
| Thermostatic valve supplied with manual regulating wheel (turning) | 60°~ ~ 1 K |
In stock
£14.39 £11.99
Sold by / Each
In Stock
Collection from store
Collection from our branches at Kingsfold and Billingshurst. You can choose a collection date/time at checkout.
Local Delivery
Delivery by our own vehicles around Surrey and Sussex. Available delivery dates shown at checkout. Please see Delivery Information for costs.
Can we deliver to your location?
